well I was looking around and didn't find a really nice pedal install... so here's mine

Ok, well I had an extra $160 lying around so I decided to get Mugen pedals :biggrin:

Here's a step by step, this will work with a 5th gen, and pretty much the same thing for 4ths

Well, what you get are 3 pedals, 4 plates, 2 30mm for the clutch/brake and 2 20mm for the accelerator and 4 metal screws if you need to screw the accelerator into the accelerator pedal cover.

this is what I started with:

1. removing your old clutch and brake pads... these are pretty simple. all you have to do is pry with your hand and it'll come off

2. removing your accelerator pedal is a *****... this should have it's own how-to!
a. get down and look at your accelerator pedal.
b. feel around, you will notice a piece of plastic (tab) over the top of the pedal, well this is what you're aiming at prying off...then you can slide the pedal cover down.
I know you can't see it in this pic, but if you use a mirror you can see exactly what needs to be done.

well I pryed with a small screwdriver up top and got it off...
this is what you should end up with...

and then some comparisons...

...

ludehawk · 11-15-2003, 11:49 PM

and continued....
ok, now for the fun stuff...
3. peel the tape off one of the brake/clutch pedals (there the same thing)

4. insert the bottom the pedal into the bottom of the cover... then push upward to ensire a good fit.

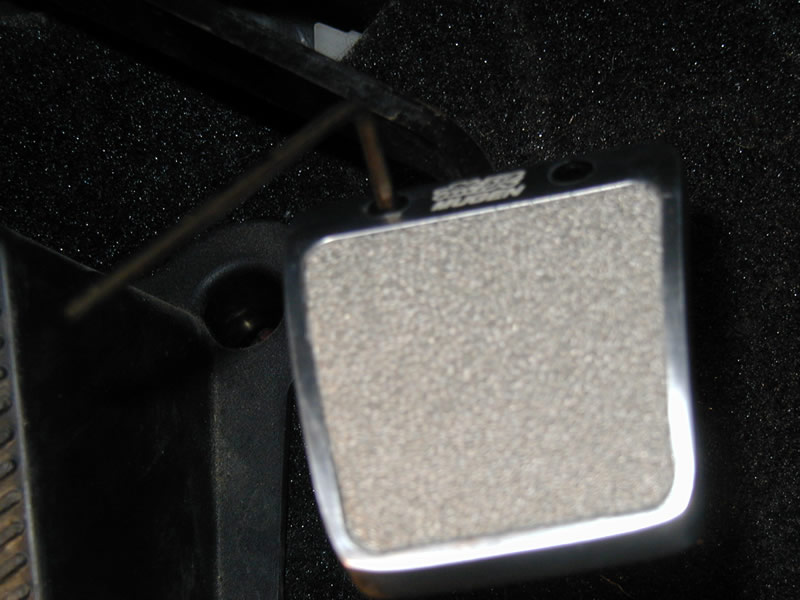

5. use the 30mm plates and the BLACK hex head screws and screw the screws into the plates behind the covers...

6. tighten the heck outta them

(damned I've got lots of pics!!!)
7. The accelerator pedal!!! Again, this should have it's own install...
a. well I didn't want to take all of the tape off of the pedal (i'm weird)
b. the instructions tell you where to put the screws... for the bb6 it says the 2nd row from the top and the very bottom (letter B in the pic)

c. ok, here's the tricky part, the pedal is clamped down, so what I did was use the screws and fastened the clamping plate via 1 or 2 turns of the screw. I did this for the top bar...
d. well as soon as i had the pedal cover in place, I held the pedal on while I tightened the top screws.
e. I then tightened the bottom plate on...
Note: now for installing the accelerator cover, you can pretty much install it with the screws (which I may do later) or not. The only reason I would use the screws is because the pedal is held on by like .1mm of material from the clamps... a really tight fit... or would that be loose?

well tighten the hell our of your screws

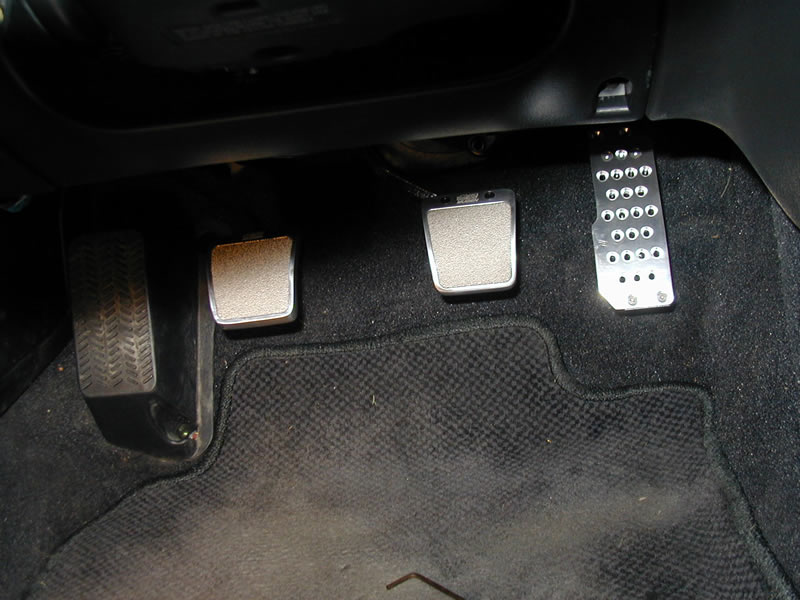

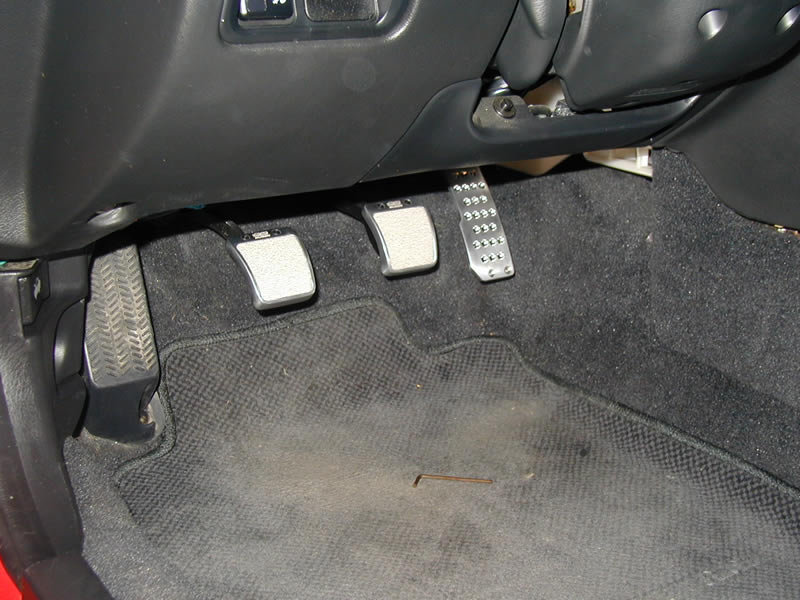

this is what you should end up having

LARGE Images available if you take "small" out of the url for the above pics.

Let me know what you guys think.
