aaron7

Tore my dash apart to fix my heat and found these... anything important?

First pic is of the mess.

Second pic is of one connector that is missing its mate.

Third pic is of three wires on the left; pink black and black that are cut. Also Two connectors in the back; white and blue that go nowhere. The yellow and black are power to the trunk for something that's no longer there lol

__________________
89 MR2 - Body done, built 3sgte w/Greddy TD06 kit, HKS cams, custom everything... car will be ready for next spring!
89 MR2 SC - ALL original down to the floormats
84 Ram D250 2wd - 440ci, Hooker headers, way too much to list
74 CB360 - Custom Mikuni carbs, restored & riding!

iSAW

The white and blue connectors in the back are for reading codes. One is for the ABS light code and the other one I believe is for the SRS light code. I cannot remember which is which. Not too sure about the rest of wires you are trying to identify. It has been awhile since I have been back there.

sol95

The blue one is the SCS connector, it's used for checking DTC's like CELs,SRS,ABS also jump it and your count the blinks

BlueLudeSI94

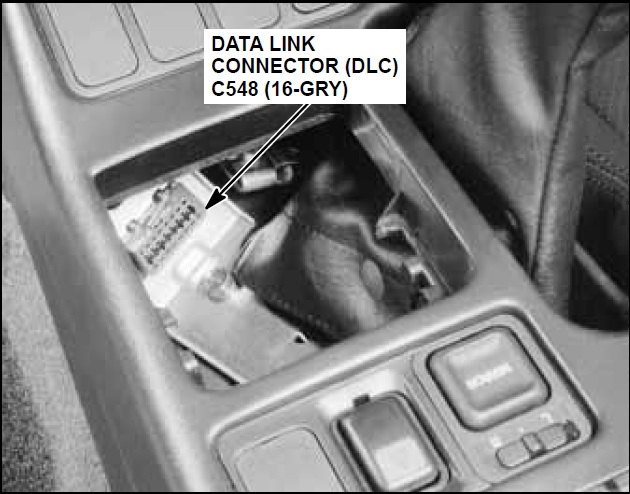

yoyoyo Yes, thanks for clarifying that. ...But where exactly is the Odb11 reader on 96 preludes?

sol95
